Name: 2.5 Ton Mini Excavator
SKU: 0

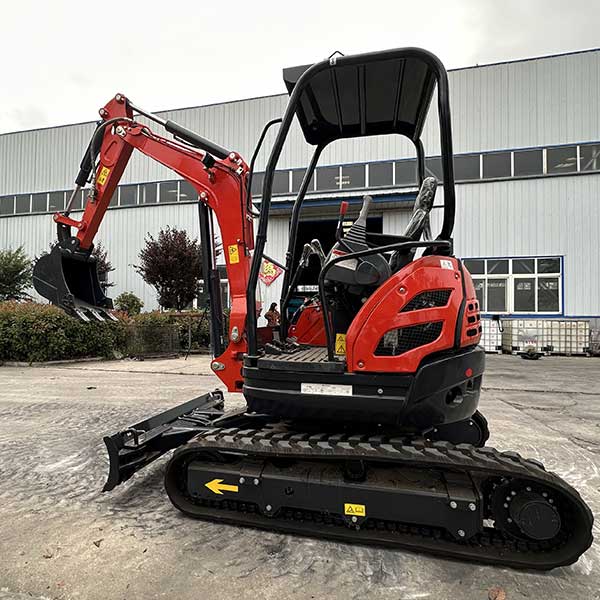

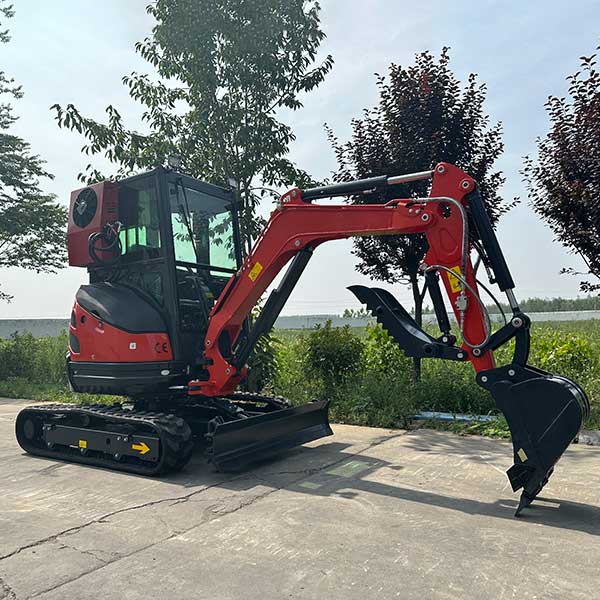

2.5 Ton Mini Excavator

The company has sufficient inventory and can be picked up at any time.

Product Description

Model	XT-25PRO
Operating Weight（KG）	2500
Total Length(mm)	3850
Total Width(mm)	1300/1500
Total Height(mm)	2380
Buldozer blade Width(Shrinkage/stretch)(mm)	1300/1500
Bulldozer blade Height(mm)	292
Clawler centerdistance(mm)	1050/1250
Clawler length(mm)	1860
Crawler width(mm)	250
Standardbucket width(With/without edge tooth)(mm)	460(410)
Wheel spacing(mm)	1475
Max.Digging Height(mm)	3880
Max.Dumping Height(mm)	2550
Max. Digging Depth(mm)	2320
Maximum depth of vertical arm excavation(mm)	1900
Max.Diggingdistance(mm)	4140
Mini. Turning radius offront end(mm)	1850
Max.Digging distance on the ground(mm)	4015
Max.Bulldozingheight(mm)	340
Max.Bulldozing depth(mm)	270
Bucket Capacity（m³）	0.066
Engine	Yanmar 3TNV76-P
Displacement L（cc）	1.116
Rated Power（KW/rpm）	15
Swing speed（r/min）	9.5
Gradeability（°）	58(30)
Ground pressure（kpa）	28.4
Bucket digging force（Kn）	18.4
Fuel tank capacity（L）	28

The XT-25PRO is built for heavy-duty efficiency with superior reach and power.

XT-25PRO (2.5 Ton) Key Selling Points：

*Heavy-Duty Power: Yanmar 3TNV76-P engine (15KW) for demanding tasks.

*Large Bucket Capacity: 0.066m³ bucket boosts productivity.

*Superior Reach: Max digging height (3880mm) and depth (2320mm).

*Robust Build: 250mm crawler width and 28.4kpa ground pressure for stability.

*Long Runtime: 28L fuel tank supports extended operations.
