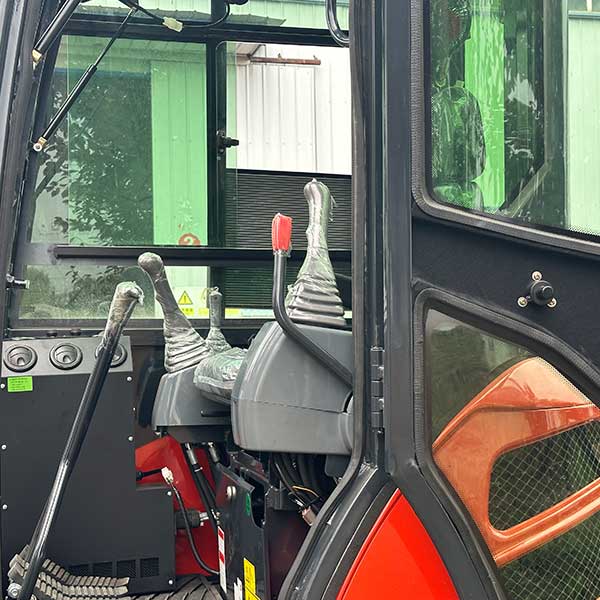

Name: 3.5 Ton Mini Excavator
SKU: 0

3.5 Ton Mini Excavator

The company has sufficient inventory and can be picked up at any time.

Product Description

Model	XT-35PRO
Operating Weight（KG）	3500
Total Length(mm)	4485
Total Width(mm)	1550
Total Height(mm)	2440
Buldozer blade Width(Shrinkage/stretch)(mm)	1550
Bulldozer blade Height(mm)	335
Clawler centerdistance(mm)	1250
Clawler length(mm)	2100
Crawler width(mm)	300
Standardbucket width(With/without edge tooth)(mm)	520(470)
Wheel spacing(mm)	1665
Max.Digging Height(mm)	4600
Max.Dumping Height(mm)	3175
Max. Digging Depth(mm)	2880
Maximum depth of vertical arm excavation(mm)	2305
Max.Diggingdistance(mm)	4965
Mini. Turning radius offront end(mm)	2035
Max.Digging distance on the ground(mm)	4845
Max.Bulldozingheight(mm)	360
Max.Bulldozing depth(mm)	340
Bucket Capacity（m³）	0.09
Engine	Yanmar 3TNV88-BSSY
Displacement L（cc）	1.64
Rated Power（KW/rpm）	19.6
Swing speed（r/min）	8.5
Gradeability（°）	58(30)
Ground pressure（kpa）	28.4
Bucket digging force（Kn）	26.5
Fuel tank capacity（L）	40

The XT-35PRO is the ultimate choice for high-power, high-efficiency excavation needs.

XT-35PRO (3.5 Ton) Key Selling Points：

*Premium Power: Yanmar 3TNV88-BSSY engine (19.6KW) for maximum output.

*Heavy-Duty Performance: 0.09m³ bucket and 26.5KN digging force.

*Impressive Reach: 4600mm digging height and 2880mm depth.

*Ultra-Stable: 300mm crawlers and 28.4kpa ground pressure.

*Long-Lasting: 40L fuel tank for all-day operation.
