Name: 2 Ton Mini Excavator
SKU: 0

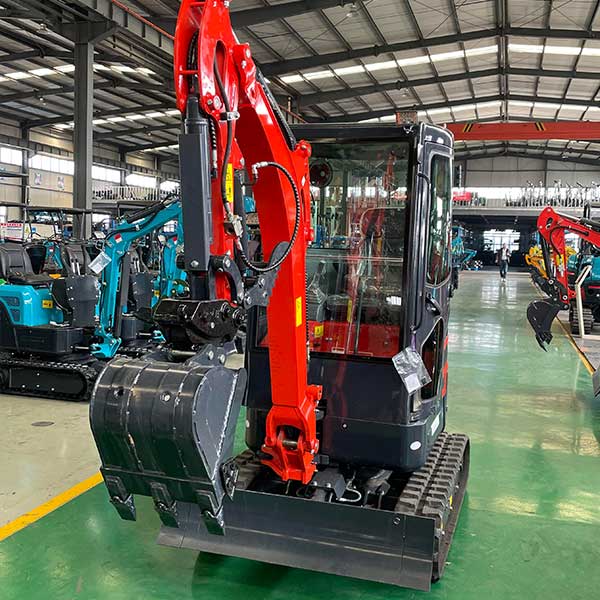

2 Ton Mini Excavator

The company has sufficient inventory and can be picked up at any time.

Product Description

Model	XT-20PRO
Operating Weight（KG）	2000
Total Length(mm)	3570
Total Width(mm)	990/1240
Total Height(mm)	2250
Buldozer blade Width(Shrinkage/stretch)(mm)	990/1240
Bulldozer blade Height(mm)	268
Clawler centerdistance(mm)	760/1010
Clawler length(mm)	1585
Crawler width(mm)	230
Standardbucket width(With/without edge tooth)(mm)	450（400）
Wheel spacing(mm)	1230
Boom height（mm）	2635
Max.Digging Height(mm)	3540
Max.Dumping Height(mm)	2440
Max. Digging Depth(mm)	2310
Maximum depth of vertical arm excavation(mm)	1910
Max.Diggingdistance(mm)	3900
Mini. Turning radius offront end(mm)	1430
Max.Digging distance on the ground(mm)	3840
Max.Bulldozingheight(mm)	245
Max.Bulldozing depth(mm)	200
Bucket Capacity（m³）	0.04
Engine	Kubota
Displacement L（cc）	0.898
Rated Power（KW/rpm）	11.8
Swing speed（r/min）	7.5
Gradeability（°）	58(30)
Ground pressure（kpa）	25.5
Bucket digging force（Kn）	15.2
Fuel tank capacity（L）	18

The XT-20PRO combines adaptability and power for versatile job site performance.

XT-20PRO (2 Ton) Key Selling Points：

*Adjustable Width (990/1240mm): Adapts to narrow or standard workspaces.

*Deep Digging Capability: Max depth of 2310mm and 3540mm digging height.

*Strong Engine: Kubota 11.8KW engine with 15.2KN bucket force.

*Optimized Mobility: 58° gradeability and 7.5r/min swing speed.

*Enhanced Stability: Reinforced 230mm crawlers for balanced operation.
